Humidity Ratio Calculator

1. What is a Humidity Ratio Calculator?

Definition: This calculator computes the humidity ratio (\( W \)), the mass ratio of water vapor to dry air, using the partial pressures of water vapor and dry air.

Purpose: It is used in HVAC systems to quantify the moisture content in air, aiding in the design of air conditioning and ventilation systems.

2. How Does the Calculator Work?

The calculator uses the following formula for humidity ratio:

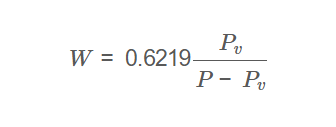

Humidity Ratio: \[ W = 0.6219 \frac{P_v}{P - P_v} \]

Where:

\( W \): Humidity ratio (lb_v/lb_da or kg_v/kg_da)
\( P_v \): Partial pressure of water vapor (psia, inHg, Pa)
\( P \): Total pressure (psia, inHg, Pa)
Constant 0.6219: Ratio of molecular weights of water vapor to dry air (18.015/28.965)

Unit Conversions:

Pressures (\( P_v \), \( P \)): psia, inHg (1 inHg = 0.491154 psia), Pa (1 Pa = 0.000145038 psia)
Humidity Ratio (\( W \)): lb_v/lb_da, kg_v/kg_da (numerically the same, label changes for clarity)

Steps:

Enter the partial pressure of water vapor (\( P_v \)) and total pressure (\( P \)), and select their units.
Convert \( P_v \) and \( P \) to psia.
Validate that \( P_v < P \).
Calculate the humidity ratio using the formula.
Display the result, using scientific notation for values less than 0.001, otherwise with 6 decimal places.

3. Importance of Humidity Ratio Calculation

Calculating the humidity ratio is crucial for:

HVAC Design: Quantifies moisture content in air, aiding in the design of air conditioning, dehumidification, and ventilation systems.
Comfort and Health: Ensures appropriate humidity levels for occupant comfort and indoor air quality.
System Performance: Enables accurate calculations for psychrometric processes in HVAC systems.

4. Using the Calculator

Examples:

Example 1: For \( P_v = 0.2036 \, \text{psia} \), \( P = 14.696 \, \text{psia} \), humidity ratio in lb_v/lb_da:
- \( P - P_v = 14.696 - 0.2036 = 14.4924 \)
- \( W = 0.6219 \times \frac{0.2036}{14.4924} \approx 0.6219 \times 0.014047 \approx 0.008738 \, \text{lb_v/lb_da} \)
Example 2: For \( P_v = 3000 \, \text{Pa} \), \( P = 101325 \, \text{Pa} \), humidity ratio in kg_v/kg_da:
- Convert: \( P_v = 3000 \times 0.000145038 = 0.435114 \, \text{psia} \), \( P = 101325 \times 0.000145038 = 14.6956 \, \text{psia} \)
- \( P - P_v = 14.6956 - 0.435114 = 14.2605 \)
- \( W = 0.6219 \times \frac{0.435114}{14.2605} \approx 0.6219 \times 0.030514 \approx 0.018977 \, \text{kg_v/kg_da} \)

5. Frequently Asked Questions (FAQ)

Q: What is the humidity ratio?
A: The humidity ratio (\( W \)) is the mass ratio of water vapor to dry air in a moist air mixture, typically expressed in lb_v/lb_da or kg_v/kg_da.

Q: Why is humidity ratio important in HVAC systems?
A: It quantifies the moisture content in air, which is essential for designing systems that control humidity for comfort, health, and equipment performance.

Q: How do I determine the partial pressure of water vapor (\( P_v \))?
A: \( P_v \) can be determined from the relative humidity, saturation pressure, and total pressure, often using psychrometric charts or equations.
