1. What is a Head Loss Due to Friction Calculator?

Definition: This calculator computes the head loss (\( h_f \)) due to friction in a pipe, derived from the Darcy-Weisbach equation in specific energy (head) form.

Purpose: It is used in fluid dynamics and HVAC design to quantify the energy loss in terms of head (height of fluid column) due to friction, aiding in pipe sizing and pump selection.

2. How Does the Calculator Work?

The calculator uses the following formula for head loss:

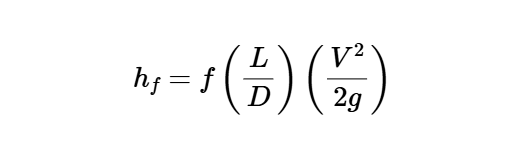

Head Loss: \[ h_f = f \left( \frac{L}{D} \right) \left( \frac{V^2}{2 g} \right) \]

Where:

• \( h_f \): Head loss (ft, m)
• \( f \): Friction factor (dimensionless)
• \( L \): Length of pipe (ft, m)
• \( D \): Internal diameter of pipe (ft, m)
• \( V \): Average velocity (fps, m/s)
• \( g \): Acceleration of gravity (ft/sec², m/s²)

Unit Conversions:

• Length (\( L \)) and Diameter (\( D \)): ft, m (1 m = 3.28084 ft)
• Velocity (\( V \)): fps, m/s (1 m/s = 3.28084 fps)
• Acceleration of Gravity (\( g \)): ft/sec², m/s² (1 m/s² = 3.28084 ft/sec²)
• Head Loss (\( h_f \)): ft, m (1 ft = 0.3048 m)

Steps:

• Enter the friction factor (\( f \)), length of pipe (\( L \)), internal diameter (\( D \)), average velocity (\( V \)), and acceleration of gravity (\( g \)), and select their units.
• Convert \( L \), \( D \), \( V \), and \( g \) to ft, ft, fps, and ft/sec², respectively.
• Calculate the head loss using the formula.
• Convert the result to the selected unit (ft or m).
• Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Head Loss Calculation

Calculating head loss due to friction is crucial for:

• Pipe System Design: Determines energy losses to ensure proper pipe sizing and pump requirements.
• Energy Efficiency: Minimizes energy consumption by optimizing flow conditions and reducing friction losses.
• System Performance: Ensures adequate fluid flow for industrial, HVAC, or plumbing applications.

4. Using the Calculator

Examples:

• Example 1: For \( f = 0.02 \), \( L = 100 \, \text{ft} \), \( D = 0.1667 \, \text{ft} \), \( V = 4 \, \text{fps} \), \( g = 32.2 \, \text{ft/sec²} \), head loss in ft:
  • \( h_f = 0.02 \times \left( \frac{100}{0.1667} \right) \times \left( \frac{4^2}{2 \times 32.2} \right) \approx 0.02 \times 599.88 \times 0.24845 \approx 2.98 \)
  • Since 2.98 < 10000 and > 0.00001, display with 5 decimal places: \( 2.98000 \)
• Example 2: For \( f = 0.025 \), \( L = 30 \, \text{m} \), \( D = 0.05 \, \text{m} \), \( V = 1.2 \, \text{m/s} \), \( g = 9.81 \, \text{m/s²} \), head loss in m:
  • Convert: \( L = 30 \times 3.28084 \approx 98.4252 \, \text{ft} \)
  • \( D = 0.05 \times 3.28084 \approx 0.164042 \, \text{ft} \)
  • \( V = 1.2 \times 3.28084 \approx 3.93701 \, \text{fps} \)
  • \( g = 9.81 \times 3.28084 \approx 32.1850 \, \text{ft/sec²} \)
  • \( h_f = 0.025 \times \left( \frac{98.4252}{0.164042} \right) \times \left( \frac{3.93701^2}{2 \times 32.1850} \right) \approx 0.025 \times 599.88 \times 0.24074 \approx 3.611 \)
  • Convert to m: \( 3.611 \times 0.3048 \approx 1.101 \)
  • Since 1.101 < 10000 and > 0.00001, display with 5 decimal places: \( 1.10100 \)
• Example 3: For \( f = 0.018 \), \( L = 50 \, \text{ft} \), \( D = 0.25 \, \text{ft} \), \( V = 5 \, \text{fps} \), \( g = 32.2 \, \text{ft/sec²} \), head loss in ft:
  • \( h_f = 0.018 \times \left( \frac{50}{0.25} \right) \times \left( \frac{5^2}{2 \times 32.2} \right) \approx 0.018 \times 200 \times 0.38820 \approx 1.397 \)
  • Since 1.397 < 10000 and > 0.00001, display with 5 decimal places: \( 1.39700 \)

5. Frequently Asked Questions (FAQ)

Q: What does head loss due to friction represent?
A: Head loss (\( h_f \)) quantifies the energy loss due to friction in a pipe, expressed as the equivalent height of fluid column, affecting flow efficiency.

Q: How can I determine the input parameters?
A: The friction factor (\( f \)) is obtained from Moody charts or equations based on pipe roughness and Reynolds number. Pipe length (\( L \)) and diameter (\( D \)) are measured. Average velocity (\( V \)) is calculated from flow rate and pipe area. Acceleration of gravity (\( g \)) is typically 32.2 ft/sec² in US units or 9.81 m/s² in SI units.

Q: Why is head loss important in pipe system design?
A: It ensures proper sizing of pipes and pumps to maintain desired flow rates, optimizing energy efficiency and system performance.
