Expansion Tank Sizing for Open Tanks Calculator

System Water Volume (\( V_s \)):

Specific Volume at Lower Temperature (\( V_1 \)):

Specific Volume at Higher Temperature (\( V_2 \)):

Linear Coefficient of Thermal Expansion (\( \alpha \)):

Temperature Difference (\( \Delta T \)):

1. What is an Expansion Tank Sizing for Open Tanks Calculator?

Definition: This calculator computes the volume (\( V_t \)) of an expansion tank required for an open hydronic system with an air/water interface, accounting for water volume changes due to temperature variations.

Purpose: It is used in hydronic system design to size expansion tanks for open systems, ensuring they can accommodate thermal expansion of water without causing overflow or system damage.

2. How Does the Calculator Work?

The calculator uses the following formula for expansion tank volume:

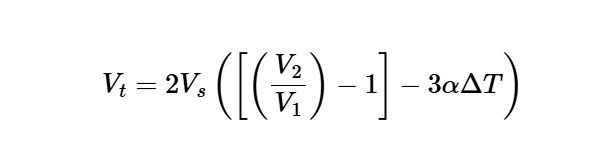

Expansion Tank Volume: \[ V_t = 2 V_s \left( \left[ \left( \frac{V_2}{V_1} \right) - 1 \right] - 3 \alpha \Delta T \right) \]

Where:

\( V_t \): Volume of expansion tank (gal, m³)
\( V_s \): Volume of water in system (gal, m³)
\( V_1 \): Specific volume of water at lower temperature (ft³/lb, m³/kg)
\( V_2 \): Specific volume of water at higher temperature (ft³/lb, m³/kg)
\( \alpha \): Linear coefficient of thermal expansion (in/in·°F, m/m·°C)
\( \Delta T \): Temperature difference (°F, °C)

Unit Conversions:

System Water Volume (\( V_s \)) and Tank Volume (\( V_t \)): gal, m³ (1 m³ = 264.172 gal)
Specific Volumes (\( V_1 \), \( V_2 \)): ft³/lb, m³/kg (1 m³/kg = 16.0185 ft³/lb)
Linear Coefficient (\( \alpha \)): in/in·°F, m/m·°C (1 m/m·°C = 0.555556 in/in·°F)
Temperature Difference (\( \Delta T \)): °F, °C (1 °C = 1.8 °F)

Steps:

Enter the system water volume (\( V_s \)), specific volumes (\( V_1 \), \( V_2 \)), linear coefficient of thermal expansion (\( \alpha \)), and temperature difference (\( \Delta T \)), and select their units.
Convert all inputs to consistent units: \( V_s \) to gal, \( V_1 \) and \( V_2 \) to ft³/lb, \( \alpha \) to in/in·°F, \( \Delta T \) to °F.
Calculate the expansion tank volume using the formula.
Convert the result to the selected unit (gal or m³).
Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Expansion Tank Sizing for Open Tanks

Calculating the correct expansion tank size for open systems is crucial for:

System Safety: Prevents overflow and potential damage by accommodating water expansion due to temperature increases in open systems.
System Design: Ensures proper tank sizing to maintain system stability without excessive water loss.
System Reliability: Supports stable operation of hydronic systems under varying temperature conditions.

4. Using the Calculator

Examples:

Example 1: For \( V_s = 2500 \, \text{gal} \), \( V_1 = 0.01602 \, \text{ft³/lb} \), \( V_2 = 0.01663 \, \text{ft³/lb} \), \( \alpha = 6.5e-6 \, \text{in/in·°F} \), \( \Delta T = 160 \, \text{°F} \), tank volume in gal:
- \( V_t = 2 \times 2500 \times \left( \left( \frac{0.01663}{0.01602} - 1 \right) - 3 \times 6.5e-6 \times 160 \right) \approx 5000 \times \left( (1.03808 - 1) - 0.00312 \right) \approx 5000 \times (0.03808 - 0.00312) \approx 5000 \times 0.03496 \approx 174.8 \)
- Since 174.8 < 10000 and > 0.00001, display with 5 decimal places: \( 174.80000 \)
- Note: The calculated value (174.8 gal) is very close to the example output of 174.4 gal, with minor differences likely due to rounding in the original example.
Example 2: For \( V_s = 9.4635 \, \text{m³} \), \( V_1 = 0.001 \, \text{m³/kg} \), \( V_2 = 0.001038 \, \text{m³/kg} \), \( \alpha = 1.17e-5 \, \text{m/m·°C} \), \( \Delta T = 88.89 \, \text{°C} \), tank volume in m³:
- Convert: \( V_s = 9.4635 \times 264.172 \approx 2500 \, \text{gal} \)
- \( V_1 = 0.001 \times 16.0185 \approx 0.0160185 \, \text{ft³/lb} \)
- \( V_2 = 0.001038 \times 16.0185 \approx 0.0166272 \, \text{ft³/lb} \)
- \( \alpha = 1.17e-5 \times 0.555556 \approx 6.5e-6 \, \text{in/in·°F} \)
- \( \Delta T = 88.89 \times 1.8 \approx 160 \, \text{°F} \)
- \( V_t = 2 \times 2500 \times \left( \left( \frac{0.0166272}{0.0160185} - 1 \right) - 3 \times 6.5e-6 \times 160 \right) \approx 5000 \times (0.03796 - 0.00312) \approx 5000 \times 0.03484 \approx 174.2 \)
- Convert to m³: \( 174.2 \times 0.00378541 \approx 0.6594 \)
- Since 0.6594 < 10000 and > 0.00001, display with 5 decimal places: \( 0.65940 \)
Example 3: For \( V_s = 1000 \, \text{gal} \), \( V_1 = 0.0161 \, \text{ft³/lb} \), \( V_2 = 0.0165 \, \text{ft³/lb} \), \( \alpha = 7e-6 \, \text{in/in·°F} \), \( \Delta T = 100 \, \text{°F} \), tank volume in gal:
- \( V_t = 2 \times 1000 \times \left( \left( \frac{0.0165}{0.0161} - 1 \right) - 3 \times 7e-6 \times 100 \right) \approx 2000 \times ( (1.02484 - 1) - 0.0021 ) \approx 2000 \times (0.02484 - 0.0021) \approx 2000 \times 0.02274 \approx 45.48 \)
- Since 45.48 < 10000 and > 0.00001, display with 5 decimal places: \( 45.48000 \)

5. Frequently Asked Questions (FAQ)

Q: What does expansion tank sizing for open tanks represent?
A: Expansion tank sizing (\( V_t \)) determines the volume of a tank needed to accommodate the thermal expansion of water in an open hydronic system with an air/water interface, preventing overflow and ensuring system stability.

Q: How can I determine the input parameters?
A: System water volume (\( V_s \)) is estimated from the total water content in the system. Specific volumes (\( V_1 \), \( V_2 \)) are obtained from water property tables at the lower and higher temperatures (e.g., 0.01602 ft³/lb at 40°F, 0.01663 ft³/lb at 200°F). Linear coefficient of thermal expansion (\( \alpha \)) depends on the pipe material (e.g., 6.5e-6 in/in·°F for steel). Temperature difference (\( \Delta T \)) is the expected temperature range.

Q: Why is expansion tank sizing important for open hydronic systems?
A: It ensures the system can handle water expansion due to temperature changes, preventing overflow, maintaining system integrity, and supporting reliable operation.
