Convective Heat Transfer Calculator for HVAC Systems

Convective Heat Transfer Calculator

Convective Heat Transfer Coefficient (\( h \)):

Surface Area (\( A \)):

Surface Temperature (\( T_{\text{surface}} \)):

Fluid Temperature (\( T_{\text{fluid}} \)):

1. What is a Convective Heat Transfer Calculator?

Definition: This calculator computes the heat flow rate (\( \dot{Q} \)) at a solid-fluid interface, driven by the temperature difference between the surface and the fluid.

Purpose: It is used in HVAC systems to calculate heat transfer in heat exchangers, radiators, and other components involving air or liquid flow over surfaces.

2. How Does the Calculator Work?

The calculator uses the convective heat transfer formula:

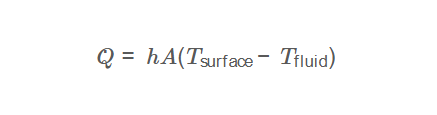

Heat Flow Rate: \[ \dot{Q} = h A (T_{\text{surface}} - T_{\text{fluid}}) \]

Where:

\( \dot{Q} \): Heat flow rate (Btu/hr, convertible to W)
\( h \): Convective heat transfer coefficient (Btu/hr-ft²-°F, W/m²-K)
\( A \): Surface area (ft², in², m²)
\( T_{\text{surface}} \): Surface temperature (°F, °C)
\( T_{\text{fluid}} \): Bulk fluid temperature (°F, °C)

Unit Conversions:

Convective Heat Transfer Coefficient (\( h \)): Btu/hr-ft²-°F, W/m²-K (1 W/m²-K = 0.176110 Btu/hr-ft²-°F)
Surface Area (\( A \)): ft², in² (1 in² = \( \frac{1}{144} \) ft²), m² (1 m² = 10.7639 ft²)
Temperatures (\( T_{\text{surface}}, T_{\text{fluid}} \)): °F, °C (°F = °C × 9/5 + 32)
Heat Flow Rate (\( \dot{Q} \)): Btu/hr, W (1 Btu/hr = 0.293071 W)

Steps:

Enter the convective heat transfer coefficient (\( h \)), surface area (\( A \)), surface temperature (\( T_{\text{surface}} \)), and fluid temperature (\( T_{\text{fluid}} \)), and select their units.
Convert all inputs to base units (\( h \) to Btu/hr-ft²-°F, \( A \) to ft², temperatures to °F).
Calculate the heat flow rate using \( \dot{Q} = h A (T_{\text{surface}} - T_{\text{fluid}}) \).
Convert the result to the selected unit (Btu/hr, W).
Display the result, using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of Convective Heat Transfer Calculation

Calculating convective heat transfer is crucial for:

HVAC Design: Determines heat transfer rates in heat exchangers, radiators, and other components, optimizing performance.
Energy Efficiency: Helps design systems that efficiently transfer heat, reducing energy consumption.
System Performance: Ensures accurate thermal load calculations for heating and cooling systems.

4. Using the Calculator

Examples:

Example 1: For \( h = 5 \, \text{Btu/hr-ft}^2\text{-°F} \), \( A = 10 \, \text{ft}^2 \), \( T_{\text{surface}} = 120 \, \text{°F} \), \( T_{\text{fluid}} = 70 \, \text{°F} \), heat flow in Btu/hr:
- Heat Flow Rate: \( \dot{Q} = 5 \times 10 \times (120 - 70) = 5 \times 10 \times 50 = 2500.0000 \, \text{Btu/hr} \)
Example 2: For \( h = 20 \, \text{W/m}^2\text{-K} \), \( A = 1 \, \text{m}^2 \), \( T_{\text{surface}} = 50 \, \text{°C} \), \( T_{\text{fluid}} = 20 \, \text{°C} \), heat flow in W:
- Convert: \( h = 20 \times 0.176110 = 3.5222 \, \text{Btu/hr-ft}^2\text{-°F} \), \( A = 1 \times 10.7639 = 10.7639 \, \text{ft}^2 \), \( T_{\text{surface}} = (50 \times 9/5) + 32 = 122 \, \text{°F} \), \( T_{\text{fluid}} = (20 \times 9/5) + 32 = 68 \, \text{°F} \)
- Heat Flow Rate: \( \dot{Q} = 3.5222 \times 10.7639 \times (122 - 68) \approx 2048.4365 \, \text{Btu/hr} \)
- Convert to W: \( \dot{Q} = 2048.4365 \times 0.293071 \approx 600.0000 \, \text{W} \)

5. Frequently Asked Questions (FAQ)

Q: What is convective heat transfer?
A: Convective heat transfer is the process of heat transfer at a solid-fluid interface, driven by the temperature difference between the surface and the fluid, given by \( \dot{Q} = h A (T_{\text{surface}} - T_{\text{fluid}}) \).

Q: Why is convective heat transfer important in HVAC systems?
A: It is essential for calculating heat transfer in heat exchangers, radiators, and other components, ensuring efficient heating and cooling performance.

Q: Where can I find the convective heat transfer coefficient (\( h \))?
A: The convective heat transfer coefficient (\( h \)) depends on fluid properties, flow conditions, and geometry, and can be determined from empirical correlations or experimental data in engineering references.
