Convection Heat Transfer Coefficient Calculator

Convection Heat Transfer Coefficient

1. What is a Convection Heat Transfer Coefficient Calculator?

Definition: This calculator computes the convection heat transfer coefficient (\( h \)) using Newton's law of cooling, based on the heat transfer rate, surface area, and temperature difference between the surface and ambient fluid.

Purpose: It is used in HVAC systems, thermal engineering, and heat exchanger design to quantify the rate of heat transfer by convection, aiding in the design of efficient cooling and heating systems.

2. How Does the Calculator Work?

The calculator uses the following formula for the convection heat transfer coefficient:

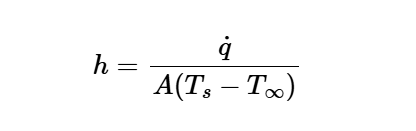

Convection Heat Transfer Coefficient: \[ h = \frac{\dot{q}}{A (T_s - T_{\infty})} \]

Where:

  • \( h \): Convection heat transfer coefficient (Btu/hr-ft²-°F, W/m²-K)
  • \( \dot{q} \): Heat transfer rate (Btu/hr, W)
  • \( A \): Surface area (ft², m²)
  • \( T_s \): Surface temperature (°F, °C)
  • \( T_{\infty} \): Ambient fluid temperature (°F, °C)

Unit Conversions:

  • Heat Transfer Rate (\( \dot{q} \)): Btu/hr, W (1 W = 3.412142 Btu/hr)
  • Surface Area (\( A \)): ft², m² (1 m² = 10.7639 ft²)
  • Surface Temperature (\( T_s \)): °F, °C (convert °C to °F: °F = (°C × 9/5) + 32)
  • Ambient Fluid Temperature (\( T_{\infty} \)): °F, °C (convert °C to °F: °F = (°C × 9/5) + 32)
  • Convection Coefficient (\( h \)): Btu/hr-ft²-°F, W/m²-K (1 Btu/hr-ft²-°F = 5.678263 W/m²-K)

Steps:

  • Enter the heat transfer rate (\( \dot{q} \)), surface area (\( A \)), surface temperature (\( T_s \)), and ambient fluid temperature (\( T_{\infty} \)), and select their respective units.
  • Convert heat transfer rate to Btu/hr, surface area to ft², and both temperatures to °F.
  • Calculate the temperature difference \( \Delta T = T_s - T_{\infty} \).
  • Calculate the convection heat transfer coefficient using the formula.
  • Convert the result to the selected unit (Btu/hr-ft²-°F or W/m²-K).
  • Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Convection Heat Transfer Coefficient Calculation

Calculating the convection heat transfer coefficient is crucial for:

  • HVAC Design: Determines the rate of heat transfer between surfaces and fluids, aiding in the sizing of cooling and heating systems.
  • Heat Exchanger Design: Helps optimize the performance of heat exchangers by quantifying convective heat transfer rates.
  • Energy Efficiency: Assists in designing systems that minimize energy losses due to convection, improving overall efficiency.

4. Using the Calculator

Examples:

  • Example 1: For \( \dot{q} = 307 \, \text{Btu/hr} \), \( A = 0.3929 \, \text{ft²} \), \( T_s = 300 \, \text{°F} \), \( T_{\infty} = 15 \, \text{°F} \), convection coefficient in Btu/hr-ft²-°F:
    • \( \Delta T = 300 - 15 = 285 \, \text{°F} \)
    • \( h = \frac{307}{0.3929 \times 285} \)
    • \( h \approx \frac{307}{111.9765} \approx 2.74197 \)
    • Since 2.74197 < 10000 and > 0.00001, display with 5 decimal places: \( 2.74197 \)
  • Example 2: For \( \dot{q} = 100 \, \text{W} \), \( A = 0.5 \, \text{m²} \), \( T_s = 50 \, \text{°C} \), \( T_{\infty} = 293.15 \, \text{K} \), convection coefficient in W/m²-K:
    • Convert \( T_{\infty} = 293.15 \, \text{K} = (293.15 - 273.15) = 20 \, \text{°C} \)
    • Convert: \( \dot{q} = 100 \times 3.412142 = 341.2142 \, \text{Btu/hr} \), \( A = 0.5 \times 10.7639 = 5.38195 \, \text{ft²} \), \( T_s = (50 \times 9/5) + 32 = 122 \, \text{°F} \), \( T_{\infty} = (20 \times 9/5) + 32 = 68 \, \text{°F} \)
    • \( \Delta T = 122 - 68 = 54 \, \text{°F} \)
    • \( h = \frac{341.2142}{5.38195 \times 54} \)
    • \( h \approx \frac{341.2142}{290.6253} \approx 1.17391 \, \text{Btu/hr-ft²-°F} \)
    • Convert to W/m²-K: \( 1.17391 \times 5.678263 \approx 6.66599 \)
    • Since 6.66599 < 10000 and > 0.00001, display with 5 decimal places: \( 6.66599 \)
  • Example 3: For \( \dot{q} = 500 \, \text{Btu/hr} \), \( A = 2 \, \text{ft²} \), \( T_s = 37.78 \, \text{°C} \), \( T_{\infty} = 70 \, \text{°F} \), convection coefficient in Btu/hr-ft²-°F:
    • Convert: \( T_s = (37.78 \times 9/5) + 32 = 100.004 \, \text{°F} \)
    • \( \Delta T = 100.004 - 70 \approx 30.004 \, \text{°F} \)
    • \( h = \frac{500}{2 \times 30.004} \)
    • \( h \approx \frac{500}{60.008} \approx 8.33289 \)
    • Since 8.33289 < 10000 and > 0.00001, display with 5 decimal places: \( 8.33289 \)

5. Frequently Asked Questions (FAQ)

Q: What does the convection heat transfer coefficient represent?
A: The convection heat transfer coefficient (\( h \)) quantifies the rate of heat transfer between a surface and a fluid due to convection, per unit area and temperature difference.

Q: Why is the convection coefficient important in HVAC design?
A: It helps engineers design systems that account for heat transfer between surfaces and air or other fluids, ensuring efficient cooling or heating.

Q: How can I determine the heat transfer rate?
A: The heat transfer rate (\( \dot{q} \)) can be measured experimentally or calculated using other heat transfer equations, such as Fourier's law for conduction or radiation formulas.
