Centrifugal Pump Horsepower Calculator

Flow Rate (\( gpm \)):

Dynamic Head (\( DH \)):

Specific Gravity (\( s \)): dimensionless

Efficiency (\( E \)): decimal

1. What is a Centrifugal Pump Horsepower Calculator?

Definition: This calculator computes the horsepower (\( HP \)) required by a centrifugal pump, based on flow rate (\( gpm \)), dynamic head (\( DH \)), specific gravity (\( s \)), and pump efficiency (\( E \)).

Purpose: It is used in pump system design to determine the power requirements for a centrifugal pump, aiding in motor selection, energy efficiency, and system performance optimization.

2. How Does the Calculator Work?

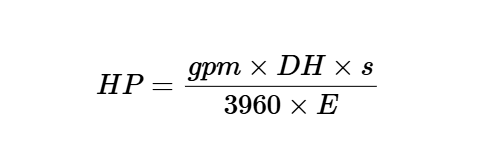

The calculator uses the following formula for horsepower:

Horsepower: \[ HP = \frac{gpm \times DH \times s}{3960 \times E} \]

Where:

\( HP \): Horsepower (hp, kW)
\( gpm \): Flow rate (gallon/min, m³/s)
\( DH \): Dynamic head (ft, m)
\( s \): Specific gravity (dimensionless)
\( E \): Efficiency (decimal, between 0 and 1)

Unit Conversions:

Flow Rate (\( gpm \)): gpm, m³/s (1 m³/s = 15850.3 gpm)
Dynamic Head (\( DH \)): ft, m (1 m = 3.28084 ft)
Horsepower (\( HP \)): hp, kW (1 hp = 0.7457 kW)

Steps:

Enter the flow rate (\( gpm \)), dynamic head (\( DH \)), specific gravity (\( s \)), and efficiency (\( E \)), and select their units where applicable.
Convert \( gpm \) to gpm and \( DH \) to ft.
Calculate the horsepower using the formula with the constant 3960.
Convert the result to the selected unit (hp or kW).
Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Horsepower Calculation

Calculating the horsepower requirement for a centrifugal pump is crucial for:

Pump System Design: Ensures the motor can provide sufficient power to meet flow and head requirements.
Energy Efficiency: Optimizes motor selection to match pump power needs, reducing energy consumption.
System Reliability: Supports consistent pump performance by ensuring adequate power for fluid movement.

4. Using the Calculator

Examples:

Example 1: For \( gpm = 400 \, \text{gpm} \), \( DH = 42 \, \text{ft} \), \( s = 1.00 \), \( E = 0.52 \), horsepower in hp:
- \( HP = \frac{400 \times 42 \times 1.00}{3960 \times 0.52} \approx \frac{16800}{2059.2} \approx 8.158 \)
- Since 8.158 < 10000 and > 0.00001, display with 5 decimal places: \( 8.15800 \)
- Note: The calculated value (8.158 hp) is very close to the example output of 8.15 hp, with minor differences due to rounding.
Example 2: For \( gpm = 0.02524 \, \text{m³/s} \), \( DH = 12.8016 \, \text{m} \), \( s = 1.00 \), \( E = 0.52 \), horsepower in kW:
- Convert: \( gpm = 0.02524 \times 15850.3 \approx 400 \, \text{gpm} \)
- \( DH = 12.8016 \times 3.28084 \approx 42 \, \text{ft} \)
- \( HP = \frac{400 \times 42 \times 1.00}{3960 \times 0.52} \approx 8.158 \, \text{hp} \)
- Convert to kW: \( 8.158 \times 0.7457 \approx 6.0834 \)
- Since 6.0834 < 10000 and > 0.00001, display with 5 decimal places: \( 6.08340 \)
Example 3: For \( gpm = 500 \, \text{gpm} \), \( DH = 50 \, \text{ft} \), \( s = 0.85 \), \( E = 0.60 \), horsepower in hp:
- \( HP = \frac{500 \times 50 \times 0.85}{3960 \times 0.60} \approx \frac{21250}{2376} \approx 8.944 \)
- Since 8.944 < 10000 and > 0.00001, display with 5 decimal places: \( 8.94400 \)

5. Frequently Asked Questions (FAQ)

Q: What does the horsepower requirement of a centrifugal pump represent?
A: Horsepower (\( HP \)) quantifies the power needed to drive a centrifugal pump to achieve a specified flow rate and head, adjusted for the liquid's specific gravity and pump efficiency.

Q: How can I determine the input parameters?
A: Flow rate (\( gpm \)) is the desired pump output (e.g., 400 gpm). Dynamic head (\( DH \)) is the total head the pump must overcome (e.g., 42 ft). Specific gravity (\( s \)) is determined from the liquid's properties (e.g., 1.00 for water). Efficiency (\( E \)) is obtained from pump specifications, typically between 0.5 and 0.9 (e.g., 0.52).

Q: Why is horsepower calculation important in pump system design?
A: It ensures the motor provides sufficient power for the pump's operation, optimizing energy use, preventing motor overload, and ensuring reliable system performance.
