Pulmonary Vascular Resistance Calculator

1. What is the Pulmonary Vascular Resistance Calculator?

Definition: The Pulmonary Vascular Resistance (PVR) Calculator estimates the resistance to blood flow in the pulmonary circulation, using mean pulmonary artery pressure (MPAP), left atrial pressure (LAP), and cardiac output (CO).

Purpose: It helps clinicians assess for conditions like pulmonary hypertension, often associated with increased PVR, and guide diagnostic and therapeutic decisions.

2. How Does the Calculator Work?

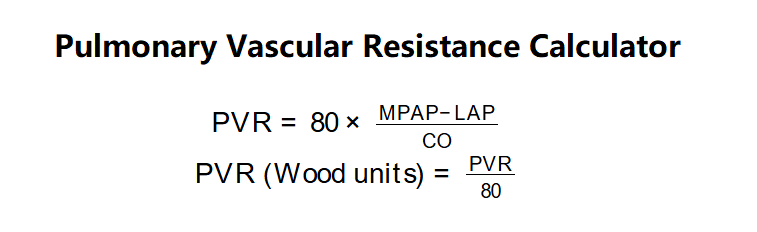

The calculator uses the following formula:

\( \text{PVR} = 80 \times \frac{\text{MPAP} - \text{LAP}}{\text{CO}} \)

\( \text{PVR (Wood units)} = \frac{\text{PVR}}{80} \)

Normal ranges for inputs:

MPAP: 10–20 mmHg
LAP: 6–12 mmHg
CO: 4–8 L/min

Interpretation of PVR (dynes·sec·cm⁻⁵):

20–120: Normal. (No action needed; continue regular monitoring.)
>120: Elevated (possible pulmonary hypertension). (Consult a cardiologist or pulmonologist; evaluate for underlying causes.)

Inputs:

Mean Pulmonary Artery Pressure (MPAP, mmHg)
Left Atrial Pressure (LAP, mmHg)
Cardiac Output (CO, L/min)

Steps:

Input the values for MPAP, LAP, and CO.
Calculate PVR using the formula.
Convert PVR to Wood units by dividing by 80.
Interpret the PVR value and provide a recommended action.

3. Importance of PVR Calculations

The PVR calculation is useful for:

Diagnosing Pulmonary Hypertension: Elevated PVR is a hallmark of pulmonary hypertension, which may be due to lung disease, heart failure, or chronic thromboembolic disease.
Guiding Treatment: Helps determine the need for further evaluation or therapies like vasodilators in pulmonary hypertension.
Monitoring Cardiac Conditions: Useful in assessing right heart function in conditions like heart failure or congenital heart disease.

4. Using the Calculator

Examples:

MPAP: 15 mmHg, LAP: 8 mmHg, CO: 5 L/min:
PVR: \( 80 \times \frac{15 - 8}{5} = 80 \times \frac{7}{5} = 112 \) dynes·sec·cm⁻⁵.
PVR (Wood units): \( \frac{112}{80} = 1.4 \).
Interpretation: Normal.
Recommended Action: No action needed; continue regular monitoring.
MPAP: 30 mmHg, LAP: 10 mmHg, CO: 4 L/min:
PVR: \( 80 \times \frac{30 - 10}{4} = 80 \times \frac{20}{4} = 400 \) dynes·sec·cm⁻⁵.
PVR (Wood units): \( \frac{400}{80} = 5 \).
Interpretation: Elevated (possible pulmonary hypertension).
Recommended Action: Consult a cardiologist or pulmonologist; evaluate for underlying causes.

5. Frequently Asked Questions (FAQ)

Q: What is Pulmonary Vascular Resistance?
A: PVR measures the resistance to blood flow in the pulmonary circulation, calculated as 80 × (MPAP - LAP) / CO, typically in dynes·sec·cm⁻⁵ or Wood units.

Q: What does an elevated PVR indicate?
A: A PVR >120 dynes·sec·cm⁻⁵ (>1.5 Wood units) suggests pulmonary hypertension, which may be due to lung disease, heart failure, or chronic thromboembolic disease.

Q: Why is CO important in PVR calculation?
A: Cardiac Output (CO) reflects the volume of blood flow; lower CO with the same pressure gradient increases PVR, indicating higher resistance in the pulmonary circulation.
