Asphalt Tonnage Calculator

Length (\( L \)):

Width (\( W \)):

Depth (\( D \)):

Weight Density (\( \rho \)): lb/ft³

Standard density for asphalt is 145 lb/ft3 (2322 kg/m3).

1. What is Asphalt Tonnage Calculator?

Definition: This calculator determines the amount of asphalt needed in tons for a paving project by calculating the volume of the area and applying the weight density of asphalt.

Purpose: It is used in construction and paving projects to estimate the quantity of asphalt required, aiding in budgeting and material procurement.

2. How Does the Calculator Work?

The calculator uses the following formula:

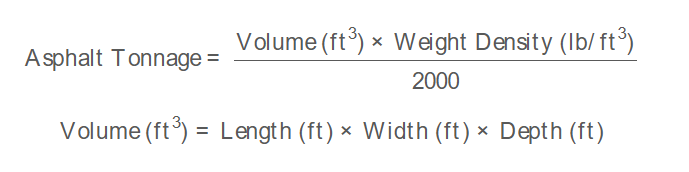

Formula: \[ \text{Asphalt Tonnage} = \frac{\text{Volume (ft}^3\text{)} \times \text{Weight Density (lb/ft}^3\text{)}}{2000} \] \[ \text{Volume (ft}^3\text{)} = \text{Length (ft)} \times \text{Width (ft)} \times \text{Depth (ft)} \] Where:

\( \text{Asphalt Tonnage} \): Amount of asphalt needed (tons, tonnes)
\( \text{Volume} \): Volume of the area to be paved (ft³)
\( \text{Length}, \text{Width}, \text{Depth} \): Dimensions of the area (ft)
\( \text{Weight Density} \): Density of asphalt (lb/ft³, default 145)

Unit Conversions:

Dimensions:
- 1 ft = 1 foot
- 1 m = 3.28084 ft
- 1 in = 0.0833333 ft
- 1 cm = 0.0328084 ft
Tonnage:
- 1 ton = 2000 lb
- 1 tonne = 0.907185 tons

Steps:

Enter the Length, Width, and Depth of the area to be paved, and select their units (ft, m, in, cm).
Enter the Weight Density of the asphalt (default 145 lb/ft³).
Convert all dimensions to feet.
Calculate the volume in cubic feet.
Multiply by the weight density to get the weight in pounds.
Convert the weight to tons by dividing by 2000.
Convert the result to the selected unit (tons, tonnes).
Display the result, using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of Asphalt Tonnage Calculation

Calculating Asphalt Tonnage is crucial for:

Project Planning: Estimating material needs to avoid over- or under-ordering asphalt.
Cost Management: Budgeting accurately for paving projects like driveways, parking lots, or roads.
Efficiency: Ensuring timely completion of projects by having the right amount of material on hand.

4. Using the Calculator

Examples:

Example 1: For Length = 150 in, Width = 100 in, Depth = 5 in, Weight Density = 145 lb/ft³, results in tons:
- Convert to feet: Length = \( 150 / 12 = 12.5000 \, \text{ft} \), Width = \( 100 / 12 = 8.3333 \, \text{ft} \), Depth = \( 5 / 12 = 0.4167 \, \text{ft} \)
- Volume: \( 12.5000 \times 8.3333 \times 0.4167 \approx 43.4028 \, \text{ft}^3 \)
- Weight: \( 43.4028 \times 145 \approx 6293.4060 \, \text{lb} \)
- Tonnage: \( 6293.4060 / 2000 \approx 3.1467 \, \text{tons} \)
Example 2: For Length = 10 m, Width = 5 m, Depth = 10 cm, Weight Density = 150 lb/ft³, results in tonnes:
- Convert to feet: Length = \( 10 \times 3.28084 = 32.8084 \, \text{ft} \), Width = \( 5 \times 3.28084 = 16.4042 \, \text{ft} \), Depth = \( 10 \times 0.0328084 = 0.3281 \, \text{ft} \)
- Volume: \( 32.8084 \times 16.4042 \times 0.3281 \approx 176.5485 \, \text{ft}^3 \)
- Weight: \( 176.5485 \times 150 \approx 26482.2750 \, \text{lb} \)
- Tonnage: \( 26482.2750 / 2000 \approx 13.2411 \, \text{tons} \)
- Convert to tonnes: \( 13.2411 \times 0.907185 \approx 12.0140 \, \text{tonnes} \)

5. Frequently Asked Questions (FAQ)

Q: What is asphalt tonnage?
A: Asphalt tonnage is the total weight of asphalt needed for a paving project, typically measured in tons or tonnes, based on the volume and density of the material.

Q: Why does weight density vary?
A: Weight density varies depending on the type of asphalt mix, the aggregate used, and the proportion of binder, which can affect the compactness of the material.

Q: How do I measure the dimensions of the area to be paved?
A: Use a tape measure or measuring wheel to determine the length, width, and desired depth of the asphalt layer, ensuring all measurements are accurate to avoid miscalculations.
