Weight to Horsepower Calculator

Weight to Horsepower Calculator - Weight to HP

Calculation Mode:

Motion Type:

Weight (\( W \)):

Distance (\( D \)):

Time (\( T \)):

1. What is Weight to Horsepower Calculator?

Definition: This calculator computes the horsepower required to move a given weight, based on force, distance, time, or velocity. It supports two modes: vertical lift (where force equals weight) and horizontal movement (where force may be less than weight due to friction or resistance).

Purpose: It is used in physics, engineering, and agriculture to determine the power needed for tasks like lifting objects, pulling loads, or designing machinery such as tractors.

2. How Does the Calculator Work?

The calculator supports two calculation modes:

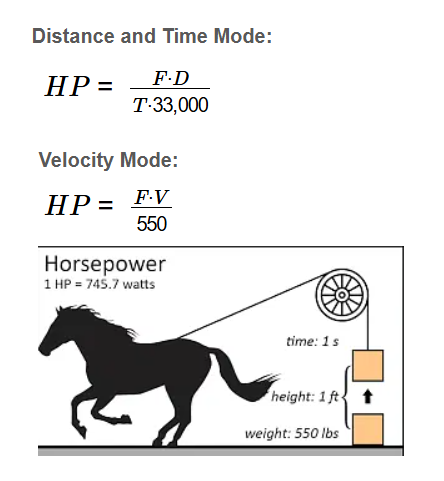

Distance and Time Mode:

\( HP = \frac{F \cdot D}{T \cdot 33,000} \)

Where:

\( HP \): Horsepower (hp)
\( F \): Force (lb, equals weight for vertical lift or user-defined for horizontal)
\( D \): Distance (ft)
\( T \): Time (min)

Velocity Mode:

\( HP = \frac{F \cdot V}{550} \)

Where:

\( HP \): Horsepower (hp)
\( F \): Force (lb, equals weight for vertical lift or user-defined for horizontal)
\( V \): Velocity (ft/s)

Steps:

Select the calculation mode (Distance and Time or Velocity).
Select the motion type (Vertical Lift or Horizontal Movement).
Enter the weight and its unit (pounds or kilograms).
For horizontal movement, optionally enter a force less than the weight.
Enter distance and time or velocity with their units (feet, meters, minutes, seconds, etc.).
Convert inputs to base units (lb, ft, min, ft/s).
Calculate the horsepower using the appropriate formula.
Convert the result to the selected output unit (hp or kW).
Display the result with 4 decimal places.

3. Importance of Horsepower Calculation

Calculating horsepower is crucial for:

Mechanical Design: Ensuring machinery has sufficient power to lift or move loads.
Agriculture: Determining the power required for tasks like plowing or hauling.
Education: Teaching students about force, work, and power relationships.

4. Using the Calculator

Example 1 (Distance and Time, Vertical Lift): Lifting a 60 lb object 2 ft in 2 minutes:

Weight (\( W \)): 60 lb
Distance (\( D \)): 2 ft
Time (\( T \)): 2 min
Horsepower (\( HP \)): \( \frac{60 \times 2}{2 \times 33,000} \approx 0.0018 \) hp
Result: \( HP = 0.0018 \) hp

Example 2 (Velocity, Vertical Lift): Lifting a 60 lb object at 1 ft/s:

Weight (\( W \)): 60 lb
Velocity (\( V \)): 1 ft/s
Horsepower (\( HP \)): \( \frac{60 \times 1}{550} \approx 0.1091 \) hp
Result: \( HP = 0.1091 \) hp

Example 3 (Distance and Time, Horizontal Movement): Pulling a 60 lb object with 40 lb force over 2 ft in 2 minutes:

Weight (\( W \)): 60 lb
Force (\( F \)): 40 lb
Distance (\( D \)): 2 ft
Time (\( T \)): 2 min
Horsepower (\( HP \)): \( \frac{40 \times 2}{2 \times 33,000} \approx 0.0012 \) hp
Result: \( HP = 0.0012 \) hp

Example 4 (Velocity, Horizontal Movement): Pulling a 60 lb object with 40 lb force at 1 ft/s:

Weight (\( W \)): 60 lb
Force (\( F \)): 40 lb
Velocity (\( V \)): 1 ft/s
Horsepower (\( HP \)): \( \frac{40 \times 1}{550} \approx 0.0727 \) hp
Result: \( HP = 0.0727 \) hp

5. Frequently Asked Questions (FAQ)

Q: What is horsepower?
A: Horsepower is a unit of power that measures the rate at which work is done, defined as 33,000 foot-pounds per minute or 550 foot-pounds per second.

Q: Why is force different from weight in horizontal movement?
A: In horizontal movement, the force required may be less than the weight due to factors like friction or the use of inclined planes, as less force is needed to overcome resistance.

Q: How is this calculator useful?
A: It helps engineers, students, and farmers calculate the power needed for lifting or moving objects, aiding in machinery design and task planning.
