RPM to Linear Velocity Calculator

Calculate:

Radius (\( r \)):

RPM:

Linear Velocity (\( v \)):

1. What is the RPM to Linear Velocity Calculator?

Definition: This calculator converts between RPM and linear velocity along a circular path using the formulas \( v = \frac{2\pi \cdot r \cdot \text{RPM}}{60} \) and \( \text{RPM} = \frac{v \cdot 60}{2\pi \cdot r} \).

Purpose: It assists engineers, physicists, and students in calculating the linear speed of a rotating object, such as a wheel or rotor, for applications in mechanics and engineering.

2. How Does the Calculator Work?

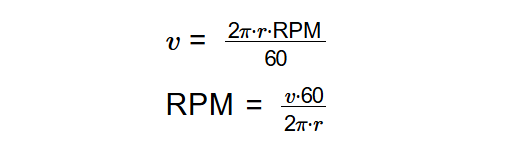

The calculator uses the equations:

\( v = \frac{2\pi \cdot r \cdot \text{RPM}}{60} \)
\( \text{RPM} = \frac{v \cdot 60}{2\pi \cdot r} \)

Where:

\( v \): Linear velocity (in m/s, km/h, or mph);
\( r \): Radius of the circular path (in m, cm, in, or ft);
\( \text{RPM} \): Revolutions per minute;
\( \pi \): Mathematical constant (approximately 3.14159);
Results are displayed with 3 decimal places (or scientific notation if less than 0.001).

Steps:

Select whether to calculate linear velocity or RPM.
Enter the radius and the other required value (RPM or velocity).
Select appropriate units for radius and velocity (if applicable).
Click "Calculate" to compute the result.
For linear velocity, select the output unit (m/s, km/h, mph).

3. Importance of RPM to Linear Velocity Conversion

Converting between RPM and linear velocity is crucial for:

Vehicle Dynamics: Calculating wheel speed for cars or bicycles.
Mechanical Engineering: Analyzing rotational systems like turbines or motors.
Physics Education: Understanding the relationship between rotational and linear motion.

4. Using the Calculator

Example 1: Calculate linear velocity for \( r = 20 \, \text{in} \), \( \text{RPM} = 1000 \), result in mph:

Radius: 20 in (0.508 m);
RPM: 1000;
\( v = \frac{2 \times 3.14159 \times 0.508 \times 1000}{60} \approx 53.108 \, \text{m/s} \);
Convert to mph: \( 53.108 \times \frac{3600}{1609.344} \approx 118.774 \, \text{mph} \);
Result: Linear Velocity = 118.774 mph.

Example 2: Calculate RPM for \( v = 10 \, \text{km/h} \), \( r = 1.5 \, \text{ft} \):

Velocity: 10 km/h (2.77778 m/s);
Radius: 1.5 ft (0.4572 m);
\( \text{RPM} = \frac{2.77778 \times 60}{2 \times 3.14159 \times 0.4572} \approx 58.025 \, \text{RPM} \);
Result: RPM = 58.025.

5. Frequently Asked Questions (FAQ)

Q: What is linear velocity?
A: Linear velocity (\( v \)) is the speed of an object moving along a circular path, measured in units like m/s or mph.

Q: What is RPM?
A: RPM (revolutions per minute) measures the number of complete rotations per minute of a rotating object.

Q: Why convert between RPM and linear velocity?
A: This conversion relates rotational speed to linear speed, useful for applications like vehicle wheels or rotating machinery.

Q: Why must radius be positive?
A: Radius represents the physical distance from the center of rotation, which must be positive for meaningful calculations.

Q: Why must RPM or velocity be non-negative?
A: RPM and velocity represent speeds, which are non-negative in realistic scenarios.

Q: How accurate is the conversion?
A: The conversion is exact, using the mathematical constant \( \pi \), with accuracy depending on input precision.

Q: What units can I use?
A: Radius: m, cm, in, ft; Linear velocity: m/s, km/h, mph; RPM is unitless but entered as a number.

Q: Can this calculator be used for vehicle wheels?
A: Yes, it’s ideal for calculating the linear speed of wheels based on their radius and RPM.

Q: Why are results sometimes in scientific notation?
A: Results less than 0.001 are shown in scientific notation for readability, per the calculator’s formatting.

Q: How does this relate to angular velocity?
A: Linear velocity is related to angular velocity (\( \omega \)) by \( v = \omega \cdot r \), and RPM converts to angular velocity via \( \omega = \frac{2\pi \cdot \text{RPM}}{60} \).

Q: Can I use this for non-mechanical applications?
A: Yes, it applies to any system with rotational motion, such as physics experiments or robotics.

Q: What if I enter a very high value?
A: High values are valid, but results may appear in scientific notation for readability.

Q: Does this account for real-world losses?
A: No, the formula assumes ideal conditions; real-world factors like friction require separate consideration.

Q: Why is 60 used in the formula?
A: The factor 60 converts seconds to minutes, aligning RPM (revolutions per minute) with linear velocity (m/s).

Q: Can this be used for educational purposes?
A: Yes, it’s ideal for students learning about rotational and linear motion in physics or engineering courses.
