RAM Latency Calculator

1. What is the RAM Latency Calculator?

Definition: This calculator computes the RAM latency (RL) in nanoseconds based on the CAS Latency (CL) and Data Rate (DR) of a RAM module. RAM latency measures the time delay between a memory controller issuing a command and the RAM responding, critical for assessing memory performance.

Purpose: It is used by computer enthusiasts, system builders, and engineers to evaluate and compare the performance of different RAM modules, aiding in hardware selection for gaming, workstations, or servers.

2. How Does the Calculator Work?

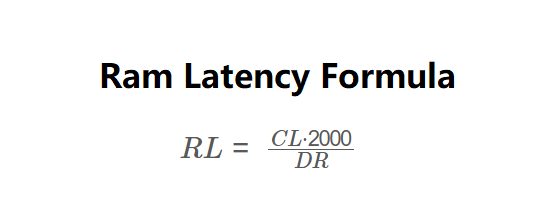

The calculator uses the following formula, as shown in the image above:

\( RL = \frac{CL \cdot 2000}{DR} \)

Where:

\( RL \): RAM Latency (in nanoseconds);
\( CL \): CAS Latency (in cycles);
\( DR \): Data Rate (in MHz);
2000: Conversion factor (1000 MHz = 1 GHz, and 1 cycle = 1/DR seconds, adjusted for nanoseconds).

Steps:

Enter the CAS Latency (\( CL \)) in cycles (e.g., 16).
Enter the Data Rate (\( DR \)) and select the unit (MHz or GHz).
The calculator converts the Data Rate to MHz if necessary, computes the latency using the formula, and formats the result (scientific notation for values < 0.001, otherwise 4 decimal places).
Results are displayed for RAM Latency, CAS Latency, and Data Rate.

3. Importance of RAM Latency Calculation

Calculating RAM latency is essential for:

Performance Optimization: Lower latency indicates faster memory response, improving system performance in tasks like gaming, video editing, or scientific simulations.
Hardware Comparison: Helps compare RAM modules with different CL and DR values to choose the best option for a specific use case.
System Design: Assists engineers in designing systems with balanced memory performance, especially in high-performance computing or real-time applications.

4. Using the Calculator

Example 1: Calculate the RAM latency for a module with CL = 16 and DR = 3200 MHz:

CAS Latency (\( CL \)): 16 cycles;
Data Rate (\( DR \)): 3200 MHz;
RAM Latency (\( RL \)): \( \frac{16 \cdot 2000}{3200} = 10.0000 \text{ nanoseconds} \).

Example 2: Calculate the RAM latency for a module with CL = 18 and DR = 3.6 GHz:

CAS Latency (\( CL \)): 18 cycles;
Data Rate (\( DR \)): 3.6 GHz = 3600 MHz;
RAM Latency (\( RL \)): \( \frac{18 \cdot 2000}{3600} = 10.0000 \text{ nanoseconds} \).

5. Frequently Asked Questions (FAQ)

Q: How accurate is the RAM latency calculation?
A: The formula is precise for theoretical latency based on CL and DR. However, real-world performance may vary due to memory controller efficiency, motherboard design, or other factors.

Q: Why is Data Rate offered in both MHz and GHz?
A: RAM specifications often list speeds in MHz (e.g., 3200 MHz) or GHz (e.g., 3.2 GHz). Offering both units ensures compatibility with different specification formats and user preferences.

Q: Does lower RAM latency always mean better performance?
A: Lower latency is generally better, but overall performance also depends on data rate, bandwidth, and system workload. High data rates can compensate for higher latency in some cases.
