Horsepower to Weight Calculator

Horsepower to Weight Calculator - HP to Weight

Calculation Mode:

Motion Type:

Horsepower (\( HP \)):

Distance (\( D \)):

Time (\( T \)):

1. What is Horsepower to Weight Calculator?

Definition: This calculator determines the weight (or force) of an object based on a given horsepower, distance, time, or velocity. It supports two modes: vertical lift (where force equals weight) and horizontal movement (where force may be less than weight due to friction or resistance).

Purpose: It is used in physics, engineering, and agriculture to estimate the weight of objects that can be moved or lifted with a specific power output, such as in machinery design or load planning.

2. How Does the Calculator Work?

The calculator supports two calculation modes:

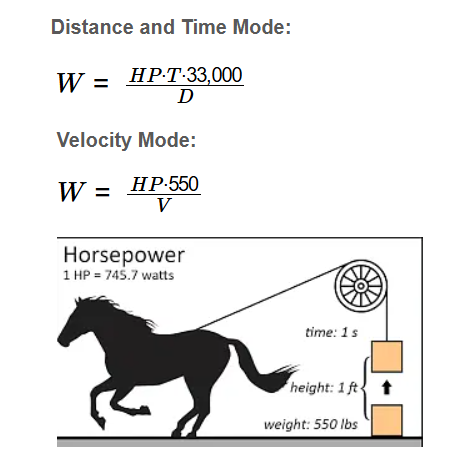

Distance and Time Mode:

\( W = \frac{HP \cdot T \cdot 33,000}{D} \)

Where:

\( W \): Weight (lb, equals force for vertical lift or user-defined for horizontal)
\( HP \): Horsepower (hp)
\( T \): Time (min)
\( D \): Distance (ft)

Velocity Mode:

\( W = \frac{HP \cdot 550}{V} \)

Where:

\( W \): Weight (lb, equals force for vertical lift or user-defined for horizontal)
\( HP \): Horsepower (hp)
\( V \): Velocity (ft/s)

Steps:

Select the calculation mode (Distance and Time or Velocity).
Select the motion type (Vertical Lift or Horizontal Movement).
Enter the horsepower and its unit (hp or kW).
For horizontal movement, optionally enter the applied force (if known).
Enter distance and time or velocity with their units (feet, meters, minutes, seconds, etc.).
Convert inputs to base units (hp, lb, ft, min, ft/s).
Calculate the weight using the appropriate formula.
Convert the result to the selected output unit (lb or kg).
Display the result with 4 decimal places.

3. Importance of Weight Calculation

Calculating weight from horsepower is crucial for:

Engineering Design: Determining the maximum load a machine can handle with a given power output.
Agriculture: Estimating the weight of loads that can be pulled or lifted by tractors or animals.
Education: Teaching students about the relationship between power, force, and motion.

4. Using the Calculator

Example 1 (Distance and Time, Vertical Lift): A machine produces 0.0018 hp to lift an object 2 ft in 2 minutes:

Horsepower (\( HP \)): 0.0018 hp
Distance (\( D \)): 2 ft
Time (\( T \)): 2 min
Weight (\( W \)): \( \frac{0.0018 \times 2 \times 33,000}{2} \approx 59.4000 \) lb
Result: \( W = 59.4000 \) lb

Example 2 (Velocity, Vertical Lift): A machine produces 0.1091 hp to lift an object at 1 ft/s:

Horsepower (\( HP \)): 0.1091 hp
Velocity (\( V \)): 1 ft/s
Weight (\( W \)): \( \frac{0.1091 \times 550}{1} \approx 60.0050 \) lb
Result: \( W = 60.0050 \) lb

Example 3 (Distance and Time, Horizontal Movement): A machine produces 0.0012 hp to pull an object with 40 lb force over 2 ft in 2 minutes:

Horsepower (\( HP \)): 0.0012 hp
Force (\( F \)): 40 lb
Distance (\( D \)): 2 ft
Time (\( T \)): 2 min
Weight (\( W \)): 40 lb (user-defined force)
Result: \( W = 40.0000 \) lb

Example 4 (Velocity, Horizontal Movement): A machine produces 0.0727 hp to pull an object with 40 lb force at 1 ft/s:

Horsepower (\( HP \)): 0.0727 hp
Force (\( F \)): 40 lb
Velocity (\( V \)): 1 ft/s
Weight (\( W \)): 40 lb (user-defined force)
Result: \( W = 40.0000 \) lb

5. Frequently Asked Questions (FAQ)

Q: What is horsepower?
A: Horsepower is a unit of power that measures the rate at which work is done, defined as 33,000 foot-pounds per minute or 550 foot-pounds per second.

Q: Why is force different from weight in horizontal movement?
A: In horizontal movement, the force required may be less than the weight due to factors like friction or inclined planes, allowing less force to move the object.

Q: How is this calculator useful?
A: It helps engineers, students, and farmers estimate the weight of objects that can be moved or lifted with a given power, aiding in machinery design and load planning.
