1. What is the Horsepower to kVA Calculator?

Definition: This calculator converts real power in horsepower (HP) to apparent power in kilovolt-amps (kVA), accounting for motor efficiency and power factor.

Purpose: It is used in electrical engineering to determine the apparent power requirements for motors and equipment based on their horsepower ratings.

2. How Does the Calculator Work?

The calculator uses the following formula:

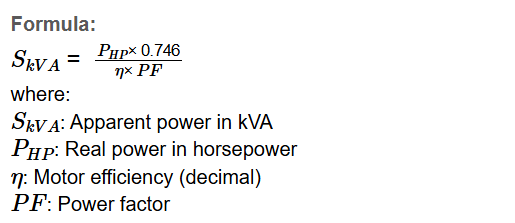

Formula:

• \( S_{kVA} = \frac{P_{HP} \times 0.746}{\eta \times PF} \)

where:

• \( S_{kVA} \): Apparent power in kVA
• \( P_{HP} \): Real power in horsepower
• \( \eta \): Motor efficiency (decimal)
• \( PF \): Power factor

Steps:

• Enter horsepower (default 25, step 0.01).
• Enter efficiency in percent (default 84, min 0 max 100).
• Enter power factor (default 0.8, min 0 max 1).
• Calculate the kVA, rounded to 4 decimal places. If efficiency is unknown, set to 100%.

3. Importance of Horsepower to kVA Conversion

Calculating horsepower to kVA is crucial for:

• Electrical Design: Sizing generators, transformers, and power systems for motors.
• Power Distribution: Ensuring proper load handling considering efficiency and power factor.
• Energy Efficiency: Optimizing motor performance and reducing energy losses.

4. Using the Calculator

Examples:

• Example 1: 25 HP, 84% efficiency, 0.8 PF:
  • Apparent Power: \( (25 \times 0.746) / (0.84 \times 0.8) \approx 27.753 \) kVA
  • Result: Apparent Power = 27.7530 kVA
• Example 2: 10 HP, 100% efficiency, 1 PF:
  • Apparent Power: \( (10 \times 0.746) / (1 \times 1) = 7.46 \) kVA
  • Result: Apparent Power = 7.4600 kVA
• Example 3: 100 HP, 90% efficiency, 0.9 PF:
  • Apparent Power: \( (100 \times 0.746) / (0.9 \times 0.9) \approx 92.099 \) kVA
  • Result: Apparent Power = 92.0990 kVA

5. Frequently Asked Questions (FAQ)

Q: What is kVA?
A: Kilovolt-amps (kVA) is a unit of apparent power, which includes both real and reactive power.

Q: Why include efficiency and power factor?
A: Efficiency accounts for losses in the motor, while power factor accounts for the phase difference between voltage and current.

Q: What if efficiency is unknown?
A: Set it to 100% for an ideal case, but use actual values for accurate results.

Q: What are common applications?
A: Used in sizing electrical equipment for motors in industrial and commercial settings.
