BHP to Torque Calculator

1. What is a BHP to Torque Calculator?

Definition: This calculator determines the torque produced by an engine given its Brake Horsepower (BHP) and Rotations Per Minute (RPM).

Purpose: It is used in automotive engineering, mechanical design, and performance analysis to evaluate the rotational force of engines and motors.

2. How Does the Calculator Work?

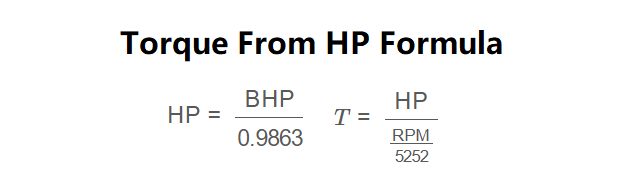

The calculator uses the following formulas:

\[ \text{HP} = \frac{\text{BHP}}{0.9863} \] \[ T = \frac{\text{HP}}{\frac{\text{RPM}}{5252}} \] Where:

\(T\): Torque (lbf·ft, N·m)
\(\text{HP}\): Horsepower
\(\text{BHP}\): Brake Horsepower
\(\text{RPM}\): Rotations Per Minute

Unit Conversions:

Torque Units: lbf·ft, N·m (1 lbf·ft = 1.355818 N·m)

Steps:

Enter the Brake Horsepower (BHP) and Rotations Per Minute (RPM)
Convert BHP to HP by dividing by 0.9863
Calculate torque using the formula \( T = \frac{\text{HP}}{\frac{\text{RPM}}{5252}} \)
Select the desired unit for the result (lbf·ft or N·m) and view the converted value

3. Importance of BHP to Torque Calculation

Calculating torque from BHP is essential for:

Engine Performance: Assessing the rotational force available for driving vehicles or machinery.
Vehicle Design: Optimizing gear ratios and transmission systems.
Performance Tuning: Enhancing engine efficiency and power delivery.

4. Using the Calculator

Examples:

Example 1: For a BHP = 200 and RPM = 3000:
- HP = \( \frac{200}{0.9863} \approx 202.781 \)
- Torque = \( \frac{202.781}{\frac{3000}{5252}} \approx 354.989 \, \text{lbf·ft} \)
- In N·m = \( 354.989 \times 1.355818 \approx 481.313 \, \text{N·m} \)
Example 2: For a BHP = 150 and RPM = 6000:
- HP = \( \frac{150}{0.9863} \approx 152.086 \)
- Torque = \( \frac{152.086}{\frac{6000}{5252}} \approx 133.121 \, \text{lbf·ft} \)
- In N·m = \( 133.121 \times 1.355818 \approx 180.493 \, \text{N·m} \)
Example 3: For a BHP = 100 and RPM = 4000:
- HP = \( \frac{100}{0.9863} \approx 101.391 \)
- Torque = \( \frac{101.391}{\frac{4000}{5252}} \approx 133.121 \, \text{lbf·ft} \)
- In N·m = \( 133.121 \times 1.355818 \approx 180.493 \, \text{N·m} \)

5. Frequently Asked Questions (FAQ)

Q: What is Brake Horsepower (BHP)?
A: Brake Horsepower (BHP) is the measure of an engine's power output before losses, such as those from the drivetrain or accessories.

Q: Why is RPM important in torque calculation?
A: RPM determines the rotational speed of the engine, which inversely affects torque for a given horsepower, as per the formula \( T = \frac{\text{HP}}{\frac{\text{RPM}}{5252}} \).

Q: What is torque?
A: Torque is the rotational force produced by an engine, measured in lbf·ft or N·m, critical for acceleration and load-carrying capacity.
