Amps to kW Calculator

Calculation Mode:

Circuit Type:

Current (Amps):

Voltage (Volts):

1. What is the Amps to Kilowatts Calculator?

Definition: This calculator converts current in amps to power in kilowatts for DC and AC circuits, using voltage or resistance. It supports DC, AC single-phase, and AC three-phase circuits with line-to-line or line-to-neutral voltage.

Purpose: It is used in electrical engineering to determine power consumption based on current, aiding in circuit design and troubleshooting.

2. How Does the Calculator Work?

The calculator uses the following formulas:

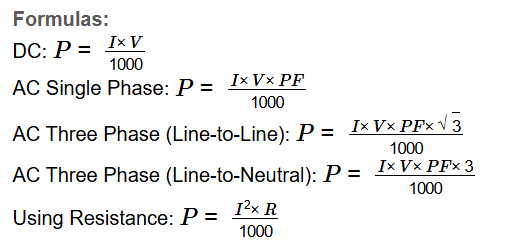

Formulas:

DC: \( P = \frac{I \times V}{1000} \)
AC Single Phase: \( P = \frac{I \times V \times PF}{1000} \)
AC Three Phase (Line-to-Line): \( P = \frac{I \times V \times PF \times \sqrt{3}}{1000} \)
AC Three Phase (Line-to-Neutral): \( P = \frac{I \times V \times PF \times 3}{1000} \)
Using Resistance: \( P = \frac{I^2 \times R}{1000} \)

where:

\( P \): Power in kW
\( I \): Current in amps (A)
\( V \): Voltage in volts (V)
\( PF \): Power factor (0-1)
\( R \): Resistance in ohms (\(\Omega\))

Steps:

Select calculation mode: Using Voltage or Using Resistance.
If Using Voltage, select circuit type: DC, AC Single Phase, or AC Three Phase.
If AC Three Phase, select voltage type: Line to Line or Line to Neutral.
Enter current in amps (default 12).
If Using Voltage, enter voltage in volts (default 120).
If AC, enter power factor (default 0.8).
If Using Resistance, enter resistance in ohms (default 10).
Calculate the power, rounded to 4 decimal places.

3. Importance of Amps to Kilowatts Conversion

Calculating amps to kilowatts is crucial for:

Electrical Design: Ensures proper power levels for devices and circuits.
Power Systems: Helps in sizing components for DC and AC systems.
Troubleshooting: Identifies issues in power delivery.

4. Using the Calculator

Examples:

Example 1 (DC Using Voltage): 12 A, 120 V:
- Power: \( 12 \times 120 / 1000 = 1.44 \) kW
- Result: Power = 1.4400 kW
Example 2 (AC Single Phase): 12 A, 120 V, PF 0.8:
- Power: \( 12 \times 120 \times 0.8 / 1000 = 1.152 \) kW
- Result: Power = 1.1520 kW
Example 3 (AC Three Phase Line-to-Line): 12 A, 208 V, PF 0.8:
- Power: \( 12 \times 208 \times 0.8 \times \sqrt{3} / 1000 \approx 3.456 \) kW
- Result: Power = 3.4560 kW
Example 4 (Using Resistance): 12 A, 10 \(\Omega\):
- Power: \( 12^2 \times 10 / 1000 = 1.44 \) kW
- Result: Power = 1.4400 kW

5. Frequently Asked Questions (FAQ)

Q: What is Watt’s Law?
A: Watt’s Law states that power (P) is equal to current (I) times voltage (V), or P = I × V.

Q: Why include power factor for AC?
A: Power factor accounts for the phase difference between current and voltage in AC circuits.

Q: What is the difference between line-to-line and line-to-neutral voltage?
A: Line-to-line is the voltage between two phases, while line-to-neutral is between a phase and neutral. In three-phase, V_{L-L} = V_{L-N} × √3.

Q: What are common applications?
A: Used in power supplies, electrical installations, and renewable energy systems.
