Amps to kVA Calculator

1. What is the Amps to kVA Calculator?

Definition: This calculator converts current in amps (A) to apparent power in kilovolt-amps (kVA) using the voltage in volts (V). It supports single-phase and three-phase systems.

Purpose: It is used in electrical engineering to determine the apparent power rating of systems based on current and voltage.

2. How Does the Calculator Work?

The calculator uses the following formulas:

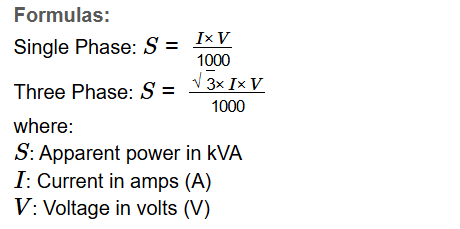

Formulas:

Single Phase: \( S = \frac{I \times V}{1000} \)
Three Phase: \( S = \frac{\sqrt{3} \times I \times V}{1000} \)

where:

\( S \): Apparent power in kVA
\( I \): Current in amps (A)
\( V \): Voltage in volts (V)

Steps:

Select the phase type: Single Phase or Three Phase.
Enter current in amps (default 40, step 0.01).
Enter voltage in volts (default 220, step 0.01).
Calculate the apparent power in kVA, rounded to 4 decimal places.

3. Importance of Amps to kVA Conversion

Calculating amps to kVA is crucial for:

Electrical Design: Sizing generators, transformers, and power systems.
Power Distribution: Ensuring proper load handling in single and three-phase circuits.
Safety and Efficiency: Preventing overloads and optimizing energy use.

4. Using the Calculator

Examples:

Example 1 (Single Phase): 40 A, 220 V:
- Apparent Power: \( 40 \times 220 / 1000 = 8.8 \) kVA
- Result: Apparent Power = 8.8000 kVA
Example 2 (Three Phase): 150 A, 440 V:
- Apparent Power: \( \sqrt{3} \times 150 \times 440 / 1000 \approx 114.312 \) kVA
- Result: Apparent Power = 114.3120 kVA

5. Frequently Asked Questions (FAQ)

Q: What is kVA?
A: Kilovolt-amps (kVA) is a unit of apparent power in electrical systems.

Q: Why distinguish between single and three-phase?
A: Three-phase systems use √3 in the formula due to the phase difference in currents.

Q: What are common applications?
A: Used in power generation, distribution, and industrial electrical planning.
