Amps to VA Calculator

1. What is the Amps to Volt-Amps Calculator?

Definition: This calculator converts current in amps to apparent power in volt-amps (VA) using the voltage in volts. It supports single-phase and three-phase circuits.

Purpose: It is used in electrical engineering to determine the apparent power rating of systems based on current and voltage.

2. How Does the Calculator Work?

The calculator uses the following formulas:

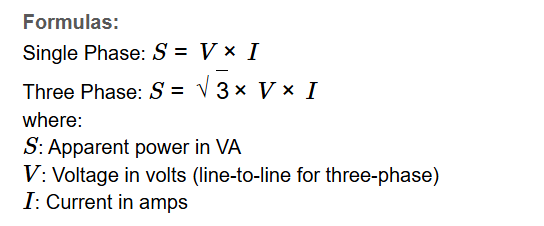

Formulas:

Single Phase: \( S = V \times I \)
Three Phase: \( S = \sqrt{3} \times V \times I \)

where:

\( S \): Apparent power in VA
\( V \): Voltage in volts (line-to-line for three-phase)
\( I \): Current in amps

Steps:

Select the phase type: Single Phase or Three Phase.
Enter current in amps (default 20, step 0.01).
Enter voltage in volts (default 120, step 0.01).
Calculate the apparent power in VA, rounded to 4 decimal places.

3. Importance of Amps to Volt-Amps Conversion

Calculating amps to VA is crucial for:

Electrical Design: Sizing generators, transformers, and power systems.
Power Distribution: Ensuring proper load handling in single and three-phase circuits.
Safety and Efficiency: Preventing overloads and optimizing energy use.

4. Using the Calculator

Examples:

Example 1 (Single Phase): 20 A, 120 V:
- Apparent Power: \( 120 \times 20 = 2400 \) VA
- Result: Apparent Power = 2400.0000 VA
Example 2 (Three Phase): 60 A, 480 V:
- Apparent Power: \( \sqrt{3} \times 480 \times 60 \approx 49883.2182 \) VA
- Result: Apparent Power = 49883.2182 VA

5. Frequently Asked Questions (FAQ)

Q: What is VA?
A: Volt-amps (VA) is a unit of apparent power in electrical systems.

Q: Why use √3 for three-phase?
A: It accounts for the phase difference in three-phase circuits.

Q: What are common applications?
A: Used in power generation, distribution, and industrial electrical planning.
