Rebar Calculator

Slab Length:

Slab Width:

Rebar-Rebar Spacing:

Edge-Grid Spacing:

Single Rebar Length:

Rebar Price:

Grid Length:

Grid Width:

Total Rebar Length:

Number of Rebar Pieces:

pieces

Total Cost:

1. What is the Rebar Calculator?

Definition: This calculator estimates the amount of rebar needed for a concrete slab, including grid dimensions, total rebar length, number of rebar pieces, and total cost, based on slab size, rebar spacing, and pricing.

Purpose: It is used in construction to plan reinforcement for concrete slabs, ensuring structural integrity while optimizing material costs and quantities.

2. How Does the Calculator Work?

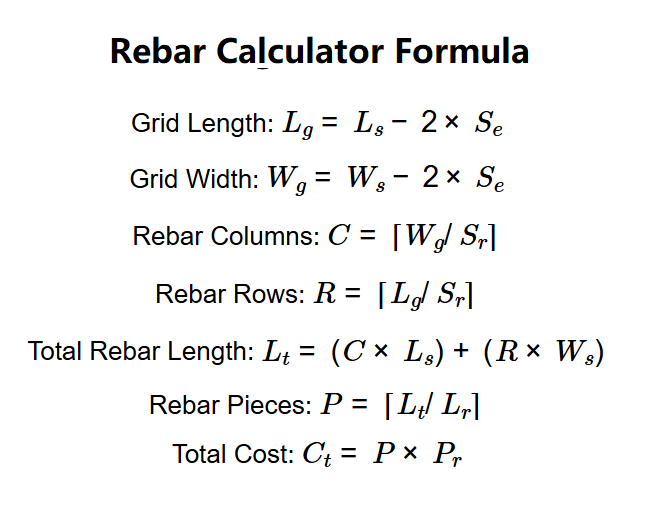

The calculator uses the following equations:

Grid Length: $ L_g = L_s - 2 \times S_e $
Grid Width: $ W_g = W_s - 2 \times S_e $
Rebar Columns: $ C = \lceil W_g / S_r \rceil $
Rebar Rows: $ R = \lceil L_g / S_r \rceil $
Total Rebar Length: $ L_t = (C \times L_s) + (R \times W_s) $
Rebar Pieces: $ P = \lceil L_t / L_r \rceil $
Total Cost: $ C_t = P \times P_r $

Where:

$ L_s $: Slab length (m, cm, mm, in, ft, yd);
$ W_s $: Slab width (m, cm, mm, in, ft, yd);
$ S_r $: Rebar-rebar spacing (m, cm, mm, in, ft, yd);
$ S_e $: Edge-grid spacing (m, cm, mm, in, ft, yd);
$ L_g $: Grid length (m, cm, mm, in, ft, yd);
$ W_g $: Grid width (m, cm, mm, in, ft, yd);
$ C $: Number of rebar columns;
$ R $: Number of rebar rows;
$ L_t $: Total rebar length (m, ft);
$ L_r $: Single rebar length (m, ft);
$ P $: Number of rebar pieces;
$ P_r $: Price per rebar (converted to $/m);
$ C_t $: Total cost ($, €, £).

Steps:

Enter the slab length and width with their units.
Specify the rebar-rebar spacing and edge-grid spacing with their units.
Enter the single rebar length and price per rebar with their units.
Convert all inputs to base units (meters for lengths, $/m for price).
Calculate the grid dimensions by subtracting twice the edge spacing from the slab dimensions.
Determine the number of rebar columns and rows by dividing grid dimensions by rebar spacing and rounding up.
Compute the total rebar length by summing the contributions of columns and rows.
Calculate the number of rebar pieces by dividing total length by single rebar length and rounding up.
Compute the total cost by multiplying pieces by price per rebar.
Convert outputs to selected units and display results, formatted appropriately.

3. Importance of Rebar Calculation

Calculating rebar requirements is crucial for:

Structural Integrity: Ensures the concrete slab can withstand tension and prevent cracking.
Cost Efficiency: Optimizes material usage to avoid over- or under-purchasing rebar.
Construction Planning: Provides accurate quantities for budgeting and logistics.
Compliance: Meets building codes specifying rebar spacing and placement.

4. Using the Calculator

Example 1 (Provided Sample): Calculate rebar for a slab with the following specs:

Slab Length: $ L_s = 6 \, \text{m} $;
Slab Width: $ W_s = 4 \, \text{m} $;
Rebar-Rebar Spacing: $ S_r = 40 \, \text{cm} = 0.4 \, \text{m} $;
Edge-Grid Spacing: $ S_e = 8 \, \text{cm} = 0.08 \, \text{m} $;
Single Rebar Length: $ L_r = 6 \, \text{m} $;
Grid Length: $ L_g = 6 - (2 \times 0.08) = 5.84 \, \text{m} $;
Grid Width: $ W_g = 4 - (2 \times 0.08) = 3.84 \, \text{m} $;
Rebar Columns: $ C = \lceil 3.84 / 0.4 \rceil = 10 $;
Rebar Rows: $ R = \lceil 5.84 / 0.4 \rceil = 15 $;
Total Rebar Length: $ L_t = (10 \times 6) + (15 \times 4) = 120 \, \text{m} $;
Rebar Pieces: $ P = \lceil 120 / 6 \rceil = 20 $;
Result: $ L_g = 5.8400 \, \text{m} $, $ W_g = 3.8400 \, \text{m} $, $ L_t = 120.0000 \, \text{m} $, $ P = 20 $, $ C_t = 256.8000 \, \$ $.

Example 2 (Default Inputs): Calculate rebar for a slab with default specs:

Slab Length: $ L_s = 25 \, \text{ft} \approx 7.62 \, \text{m} $;
Slab Width: $ W_s = 22 \, \text{ft} \approx 6.7056 \, \text{m} $;
Rebar-Rebar Spacing: $ S_r = 18 \, \text{in} = 0.4572 \, \text{m} $;
Edge-Grid Spacing: $ S_e = 3 \, \text{in} = 0.0762 \, \text{m} $;
Single Rebar Length: $ L_r = 20 \, \text{ft} \approx 6.096 \, \text{m} $;
Rebar Price: $ P_r = \$0.5/\text{ft} \approx \$1.64/\text{m} $;
Grid Length: $ L_g = 7.62 - (2 \times 0.0762) = 7.4676 \, \text{m} \approx 24.5 \, \text{ft} $;
Grid Width: $ W_g = 6.7056 - (2 \times 0.0762) = 6.5532 \, \text{m} \approx 21.5 \, \text{ft} $;
Rebar Columns: $ C = \lceil 6.5532 / 0.4572 \rceil = 15 $;
Rebar Rows: $ R = \lceil 7.4676 / 0.4572 \rceil = 17 $;
Total Rebar Length: $ L_t = (15 \times 7.62) + (17 \times 6.7056) = 228.2952 \, \text{m} \approx 748.99 \, \text{ft} $;
Rebar Pieces: $ P = \lceil 228.2952 / 6.096 \rceil = 38 $;
Result: $ L_g = 24.5000 \, \text{ft} $, $ W_g = 21.5000 \, \text{ft} $, $ L_t = 748.9900 \, \text{ft} $, $ P = 38 $, $ C_t = 380.0100 \, \$ $.

5. Frequently Asked Questions (FAQ)

Q: What is rebar-rebar spacing?
A: It’s the center-to-center distance between adjacent rebar bars in the grid, typically 12–24 inches for slabs, depending on structural requirements.

Q: Why is edge-grid spacing important?
A: Edge-grid spacing ensures the rebar grid is inset from the slab edges, providing adequate concrete cover (often 2–3 inches) to protect the rebar from corrosion and meet building codes.

Q: Can I use this calculator for non-rectangular slabs?
A: This calculator assumes a rectangular slab. For irregular shapes, you’ll need to break the area into rectangles or consult a specialized tool.
