Pipe Slope Calculator

1. What is the Pipe Slope Calculator?

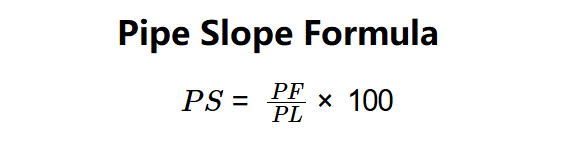

Definition: This calculator computes the pipe slope percentage (PS) based on the pipe fall (PF) and pipe length (PL), using the formula \( PS = \frac{PF}{PL} \times 100 \).

Purpose: It assists engineers, plumbers, and contractors in designing drainage or sewer systems to ensure proper flow and prevent blockages.

2. How Does the Calculator Work?

The calculator uses the equation:

\( PS = \frac{PF}{PL} \times 100 \)

Where:

\( PS \): Pipe slope (in %);
\( PF \): Pipe fall, the vertical drop (in ft, m, or cm);
\( PL \): Pipe length, the horizontal run (in ft, m, or cm);
Results are displayed with 3 decimal places (or scientific notation if less than 0.001).

Steps:

Enter the pipe fall (\( PF \)) and select the unit (ft, m, cm).
Enter the pipe length (\( PL \)) and select the unit (ft, m, cm).
Click "Calculate" to compute the pipe slope percentage.

3. Importance of Pipe Slope Calculation

Calculating pipe slope is crucial for:

Drainage Systems: Ensuring pipes have adequate slope for gravity-driven flow to prevent clogs.
Sewer Design: Meeting regulatory standards for wastewater systems.
Construction Accuracy: Providing precise measurements for pipe installation.

4. Using the Calculator

Example 1: Calculate the pipe slope for \( PF = 1 \, \text{ft} \), \( PL = 100 \, \text{ft} \):

Pipe Fall: 1 ft;
Pipe Length: 100 ft;
\( PS = \frac{1}{100} \times 100 = 1 \, \% \);
Result: Pipe Slope = 1%.

Example 2: Calculate the pipe slope for \( PF = 50 \, \text{cm} \), \( PL = 10 \, \text{m} \):

Pipe Fall: 50 cm (1.64042 ft);
Pipe Length: 10 m (32.8084 ft);
\( PS = \frac{1.64042}{32.8084} \times 100 \approx 5 \, \% \);
Result: Pipe Slope = 5%.

5. Frequently Asked Questions (FAQ)

Q: What is pipe slope?
A: Pipe slope is the percentage ratio of the vertical drop (pipe fall) to the horizontal length of a pipe, indicating its incline.

Q: Why is pipe slope important?
A: Proper pipe slope ensures gravity-driven flow in drainage or sewer systems, preventing blockages and ensuring efficiency.

Q: Why must pipe length be positive?
A: Pipe length must be positive to avoid division by zero and represent a realistic pipe segment.

Q: Can pipe fall be zero?
A: Yes, a zero pipe fall results in a 0% slope, indicating a horizontal pipe, though this may not be ideal for drainage.

Q: What units can I use for pipe fall and length?
A: You can use feet (ft), meters (m), or centimeters (cm), and the calculator converts them to feet for consistency.

Q: How accurate is the pipe slope formula?
A: The formula is exact for linear pipes, with accuracy depending on the precision of input measurements.

Q: What is a typical pipe slope for sewer systems?
A: Typical sewer pipe slopes range from 1% to 2% for proper drainage, per standards like WSSC guidelines.

Q: Can this calculator be used for irrigation systems?
A: Yes, it applies to any piping system requiring slope calculations, such as irrigation or stormwater systems.

Q: Why are results sometimes in scientific notation?
A: Results less than 0.001 are shown in scientific notation for readability, per the calculator’s formatting.

Q: How does pipe slope affect flow?
A: Steeper slopes increase flow velocity, while insufficient slopes may cause sediment buildup or blockages.

Q: Can I use different units for pipe fall and length?
A: Yes, the calculator converts both inputs to feet before calculating the slope, ensuring consistency.

Q: What happens if pipe fall is negative?
A: Negative pipe fall is not allowed, as it implies an upward slope, which is invalid for gravity-driven systems.

Q: Is this calculator useful for construction?
A: Yes, it helps ensure pipes are installed at the correct slope for effective drainage or sewer function.

Q: How do I measure pipe fall and length?
A: Pipe fall is the vertical drop between two points, and pipe length is the horizontal distance, typically measured with surveying tools.

Q: Can this calculator be used for non-sewer pipes?
A: Yes, it applies to any piping system where slope is relevant, such as plumbing or drainage pipes.
